DIPERCAYA OLEH BERBAGAI PERUSAHAAN TERNAMA DI INDONESIA
DISTRIBUTOR
AC & VENTILATION SYSTEM
HELON EXPLOSION PROOF
Sole agent (agen tunggal) perlengkapan AC dan Ventilation System HELON Indonesia termurah, resmi, tersertifikasi CNEX dan bergaransi resmi.
Dapatkan penawaran AC Explosion Proof terbaru dari Helon Explosion Proof hari ini.
Previous slide
Next slide
BERBAGAI TIPE DAN SPESIFIKASI
AC EXPLOSION PROOF
Kami menyediakan AC spesifikasi anti ledakan (explosion proof) khusus untuk Industrial Area – khususnya klasifikasi hazardous area (area berbahaya / resiko tinggi) memberikan perlinduungan dari gas, debu, tekanan ledakan. Kami lampirkan panduan baca klasifikasi temperatur, divisi, sertifikasi perlindungan, dan klasifikasi zona.
Produk yang kami miliki dapat diaplikasikan pada Zona T1 – T6.
Kami menyediakan Electrical Box dengan Rating IP65 & IP66, tinggal disesuaikan saja dengan lingkungan dimana produk ini akan diaplikasikan.
Electrical Box yang kami miliki dapat diaplikasikan pada Zona 1 dan 2, Zona 21 dan 22.
jQuery(document).ready(function($) {
var delay = 100; setTimeout(function() {
$('.elementor-tab-title').removeClass('elementor-active');
$('.elementor-tab-content').css('display', 'none'); }, delay);
});

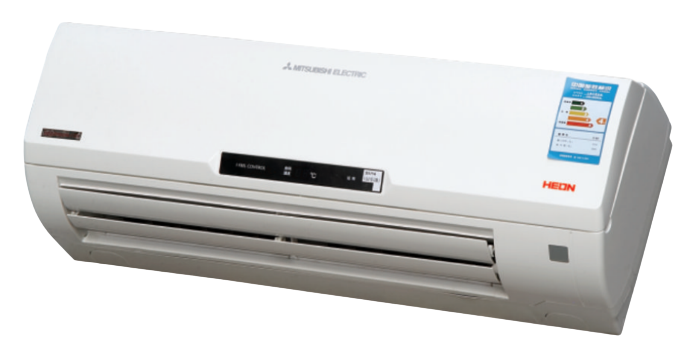

AC Split / Hanging Type
BKFR Series Explosion Proof
| Performance Parameter | BKFR-26 | BKFR-35 | BKFR-50 | |
|---|---|---|---|---|
| Input power (P) | 1P | 1.5P | 2P | |
| Working voltage (v) | AC220 | AC220 | AC220 | |
| Supply frequency (Hz) | 50 | 50 | 50 | |
| Refrigerating capacity (W) | 2600 | 3500 | 5000 | |
| Heating capacity (W) | 2880 | 3900 | 5700 | |
| Rated input power (W) | Refrigeration | 742 | 1015 | 1432 |
| Heating | 798 | 1190 | 1690 | |
| Rated input current (A) | Refrigeration | 3.3 | 4.6 | 6.5 |
| Heating | 3.6 | 5.4 | 7.6 | |
| Outline dimension W × H × D | Indoor | 790×265×170 | 845×275×180 | 980×298×200 |
| Outdoor | 848×540×320 | 899×596×378 | 955×700×396 | |
| Weight(kg) | Indoor | 9.5 | 10.5 | 13 |
| Outdoor | 38.5 | 41.5 | 53 | |
| Noise (dB) | Indoor | 34.8/38.8 | 36.8/40.8 | 40/50 |
| Outdoor | 49 | 50 | 53 | |
| Area Height: within 3 meters | 10~15 (10~12) | 14~21 (13~16) | 24~36 (22~27) |
|
| Ex Mark | Exde ib mb II BT4Gb , Exdeibmb II CT4Gb | |||
| Joint pipe length(m) | 3 | 3 | 3 | |

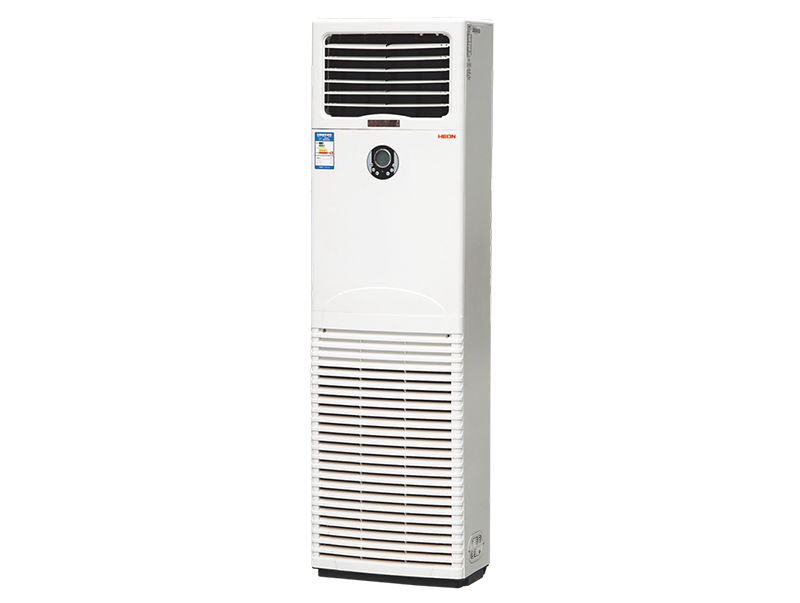

AC Standing/Cabinet Type
BKGR Series Explosion Proof
| Performance Parameter | BKGR-50 | BKGR-72 | BKGR-120 | BKGR-280 | |
|---|---|---|---|---|---|
| Input power (P) | 2P | 3P | 5P | 10P | |
| Working voltage (v) | AC220 | AC220/380 | AC380 | AC380 | |
| Supply frequency (Hz) | 50 | 50 | 50 | 50 | |
| Refrigerating capacity (W) | 5200 | 7200 | 12000 | 28000 | |
| Heating capacity (W) | 5730 | 8000 | 12500 | 30000 | |
| Rated input power (W) | Refrigeration | 1490 | 2340 | 3850 | 9900 |
| Heating | 1500 | 2490 | 3800 | 9500 | |
| Rated input current (A) | Refrigeration | 6.7 | 9.86/4.1 | 7.5 | 19.8 |
| Heating | 6.8 | 10.27/4.3 | 7.5 | 19 | |
| Outline dimension W × H × D | Indoor | 500×1757×316 | 482×1680×275 | 581×1870×395 | 1200×850×400 |
| Outdoor | 955×700×424 | 955×700×396 | 1032×1250×412 | 990×1700×840 | |
| Weight(kg) | Indoor | 40 | 40 | 63 | 150 |
| Outdoor | 54 | 67 | 112 | 230 | |
| Noise (dB) | Indoor | 42/46 | 36/42 | 44/50 | 59/64 |
| Outdoor | 53 | 53 | 60 | 68 | |
| Area Height: within 3 meters | 23~29 | 32~50 | 55~85 | 95~112 | |
| Ex Mark | Exde ib mb II BT4Gb , Exdeibmb II CT4Gb | ||||
| Joint pipe length(m) | 4 | 4 | 4 | 5 | |
bLOWER & EXHAUST FAN vENTILATION
EXPLOSION PROOF

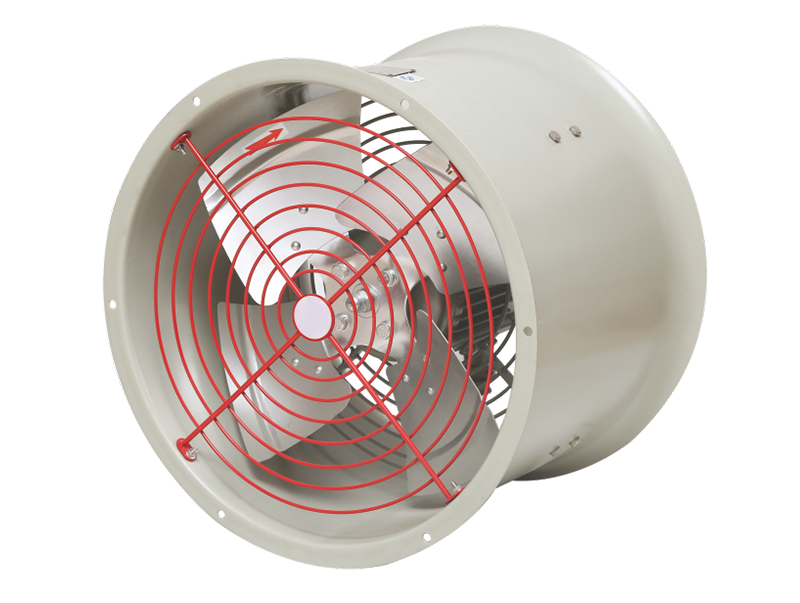

Helon BT35 - Round Blower Exhaust Fan
Application Scope
• Explosion proof protection : China Ex (GB)• Application in hazardous area : Zone 1 and Zone 2
• The product is composed of explosion-proof motor, fan blade, fan stack, etc
• Can be used to ventilation, exhaust, and also install in a long interval of exhaust pipe to improve the pressure in the pipeline.
• Cable wiring.
Technical Parameter
| Ex marking | Gas | Ex d IIB T4 Gb |
|---|---|---|
| Conformity to standards | GB3836.1, GB3836.2 | |
| Material | Fan stack | Steel plate bending, powder coated, industrial gray (RAL7038) |
| Fan blade | Aluminum plate | |
| Outlet screen | Steel wire, powder coated | |
| Inlet screen | Steel wire, powder coated | |
| Exposed fastener | Stainless steel | |
| Rated voltage | 220V AC, 380V AC | |
| Device No. | 2.8, 3.15, 3.55, 4, 4.5, 5, 5.6, 6.3, 7.1, 8, 9, 10, 11.2 | |

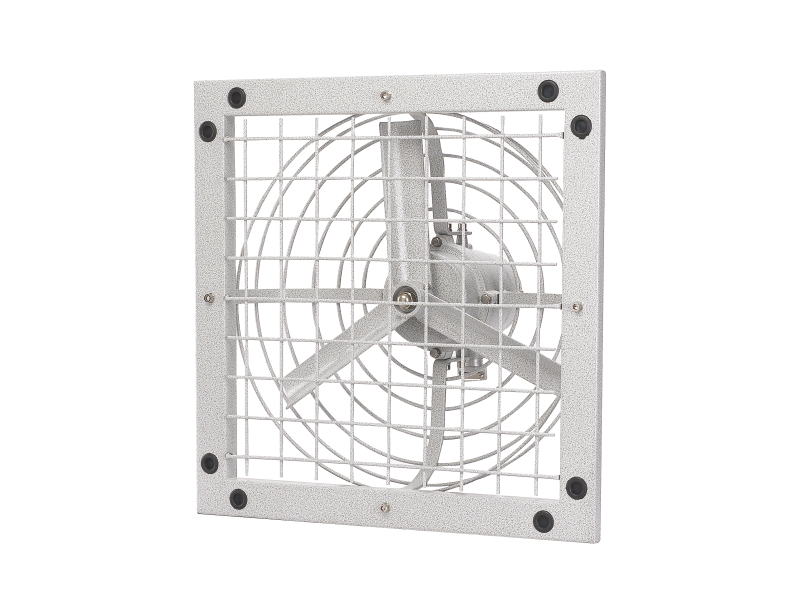

Helon BFS-F Square Blower Exhaust Fan
Application Scope
• Zone and 2 zone II A, II class B explosive gas environment;• Cable wiring.
• Temperature group T1 ~ T4;
• Indoor, outdoor (IP54);
• Used in chemical industry, oil refining, petroleum mining, oil tanker, pharmaceutical, war industry For the dangerous sites such as ventilation and exhaust, the use of cooling.
Product Feature
• This product by explosion-proof motor, blade and metal frame, shutter, etc;• Steel pipe or cable wiring.
Explosion Proof Exhaust Flow Fan BFS Series
Application Scope
• Zone and 2 zone II A, II class B explosive gas environment;• Cable wiring.
• Indoor, outdoor (IP54);
• Used in chemical industry, oil refining, petroleum mining, oil tanker, pharmaceutical, war industry For the dangerous sites such as ventilation and exhaust, the use of cooling.
Product Feature
• This product by explosion-proof motor, blade and metal frame, shutter, etc;• Steel pipe or cable wiring.
Technical Parameter for BFS Series
| Model specification | Rated voltage (v) | Power(W) | Blowing rate (m3/min) | Spindle speed (rpm/min) | Explosion-proof mark | Protection Level | Corrosin proof grade | Incoming line thread (G) | Cable diameter (mm) |
|---|---|---|---|---|---|---|---|---|---|
| BFS-300F(S) | 220 | 180 | 24 | 1450 | Exd II BT4 | IP54 | W, WF1 | 3/4 | ɸ10~ ɸ14 |
| BFS-400F(S) | 380 | 48 |
jQuery(document).ready(function($) {
var delay = 100; setTimeout(function() {
$('.elementor-tab-title').removeClass('elementor-active');
$('.elementor-tab-content').css('display', 'none'); }, delay);
});
jQuery(document).ready(function($) {
var delay = 100; setTimeout(function() {
$('.elementor-tab-title').removeClass('elementor-active');
$('.elementor-tab-content').css('display', 'none'); }, delay);
});
jQuery(document).ready(function($) {
var delay = 100; setTimeout(function() {
$('.elementor-tab-title').removeClass('elementor-active');
$('.elementor-tab-content').css('display', 'none'); }, delay);
});
Dapatkan penawaran terbaru produk AC dan Exhaust Fan Explosion Proof hari ini.
Gratis survey lokasi dan konsultasi bersama kami
KENAPA HARUS ac dan Ventilation system explosion proof
dari helon indonesia?
MATERIAL TERBAIK
Terbuat dari material terfabrikasi anti karat dan kemampuan housing explosion proof terbaik yang terbukti andal diberbagai macam kondisi suhu dan cuaca.
GRATIS KONSULTASI & SURVEY LOKASI
Kami memastikan anda mendapatkan solusi seputar Air Conditioner dan Ventilation System berstandar explosion proof untuk kebutuhan Anda.
INSTALASI & MAINTENANCE TERBAIK
Kami hanya mendatangkan teknisi pemasangan berpengalaman dan memahami seluk beluk produk dengan sangat baik.
JAMINAN TERMURAH
Selaku pemegang merek utama merek Helon, kami menjamin semua klien kami mendapatkan harga terbaik.
GARANSI 1 TAHUN
Kami memastikan produk AC dan ventilation equipment system yang kami miliki mempunyai kelayakan yang terbaik. Kami berikan garansi 1 tahun untuk maintenance produk.
TERPERCAYA
Berpengalaman lebih dari 5 tahun di industri klasifikasi hazardous area di Indonesia seputar explosion proof AC dan ventilation equipment system.
Konsultasikan kebutuhan AC dan Ventilation System Explosion Proof dengan harga terbaik dari hari ini!
